Progressive Linkage. 9-5/8in. Fits 4-cyl Ford
$99.95
Linkages
9252PRO

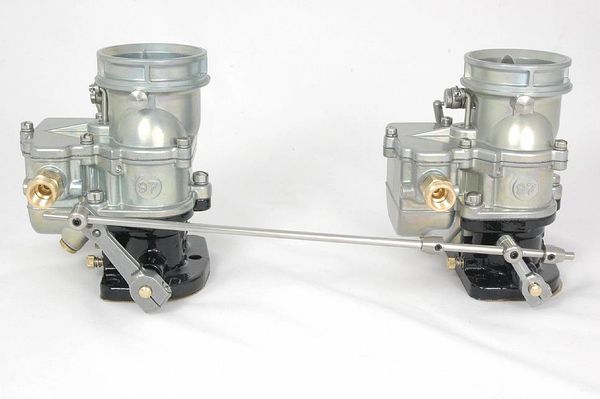

A high quality 2x2 progressive carburetor linkage designed for great looks and a positive action (click more for applications and details). Can be used with Ford V8 applications, but also fits the Burns, Zephyr and Roof 101 Cyclone intake manifolds for early Ford 4-cylinder engines. However, please be aware that these three manifolds for Ford Model A and B engines only have a 'compensation tube' between the two carburetor mounts. These are NOT mixing plenums, but only there to smooth out the pulses from each port bank. For best efficiency, use the 9254S linkage and ensure both carburetors are matched to avoid a lean/rich issue at one end and hard running in the low rpm range.
Designed and manufactured exclusively by Stromberg Carburetor, the TwoStep linkage range combines clean, traditional looks with maximum leverage and huge versatility. Each kit comes pre-assembled and installs in just two simple steps, without the need for extended throttle shafts. Our kits are not a ‘one size fits all’ solution. Different intakes use different carb spacing, so we modelled every kit in 3D CAD and offer different kits for specific intakes. If you’re in doubt, simply measure your manifold spacing – throttle shaft to throttle shaft.
Check out the following features:
Die-cast zinc SuperLink lever arms. All other parts stainless steel.

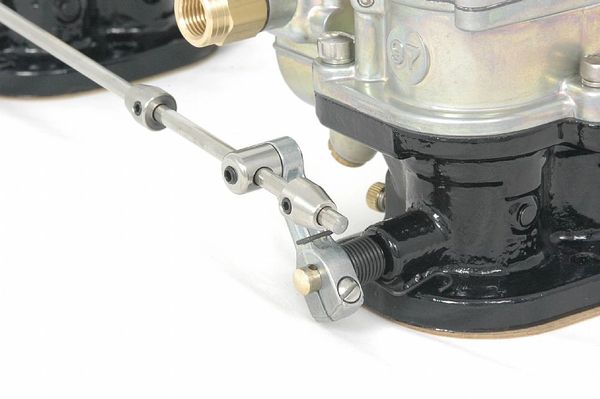

Every
kit comes with new Stromberg ‘Snapback’ throttle return springs, which
wrap around the end of the throttle shaft. These chemically blacked,
stainless steel torsion springs snap the carburetors shut, yet virtually
disappear from view.
TwoStep progressive systems are
designed to ensure optimum performance and maximum versatility. The long
primary lever has three mounting points so you can change when the
secondary carburetor opens, and you can pull the front carburetor or
push the rear one open to suit individual applications. On the top
setting (as supplied), the linkage will start to open the secondary
carburetor at around 50% throttle. Lower holes will open the secondary
carburetor sooner.

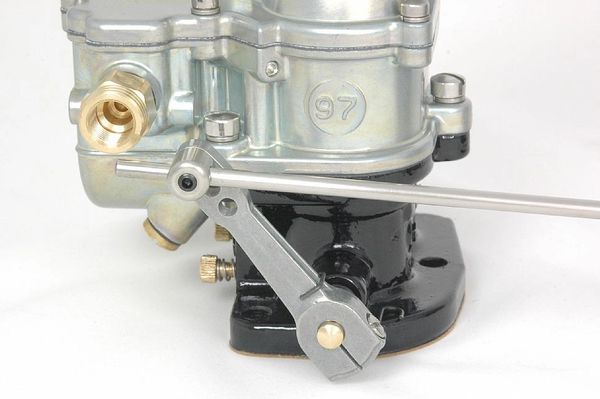

To improve leverage, the primary
(center) arm was kept as long as possible without hitting the carburetor
S-jet. It also has a bigger clamping screw to handle more linkage
torque. The sliding progressive rod meets the secondary carb rod at the
top of the lever arm - not part way down like some systems. Effective
leverage is especially important as 97 multi-carb systems have strong
spring resistance.

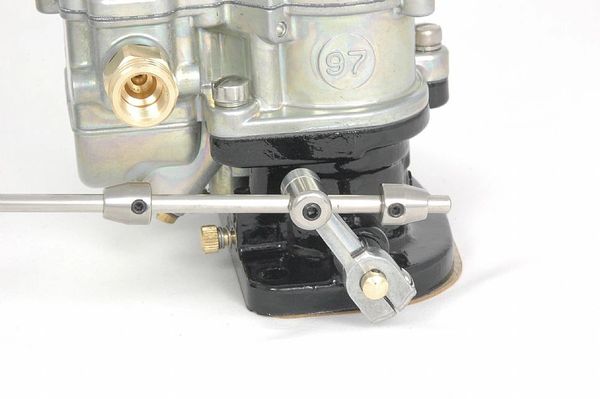

The neat tapered rod stops are fully adjustable, with discreet set screw fixings.
WARNING!
To use this linkage with banjo fuel fittings (eg. Stromberg 9082K and
9083K), you must add our 9086K banjo fitting spacers. Without them, the
banjo and its fuel hose will interfere with the long primary lever arm
causing linkage binding or sticking, which could result in uncontrolled
engine speed, property damage, serious personal injury or death. Always
read the instructions before installation.
Every Stromberg TwoStep linkage kit comes with full instructions. Further help with selection, installation and tuning is available at our Tech Center.
9252PRO
- Two carb progressive linkage for Ford flathead engines
- 9-5/8 inches from carb to carb
- Extended throttle shafts not required
- DO NOT use with banjo fittings
A high quality 2x2 progressive carburetor linkage designed for great looks and a positive action (click more for applications and details). Can be used with Ford V8 applications, but also fits the Burns, Zephyr and Roof 101 Cyclone intake manifolds for early Ford 4-cylinder engines. However, please be aware that these three manifolds for Ford Model A and B engines only have a 'compensation tube' between the two carburetor mounts. These are NOT mixing plenums, but only there to smooth out the pulses from each port bank. For best efficiency, use the 9254S linkage and ensure both carburetors are matched to avoid a lean/rich issue at one end and hard running in the low rpm range.
Designed and manufactured exclusively by Stromberg Carburetor, the TwoStep linkage range combines clean, traditional looks with maximum leverage and huge versatility. Each kit comes pre-assembled and installs in just two simple steps, without the need for extended throttle shafts. Our kits are not a ‘one size fits all’ solution. Different intakes use different carb spacing, so we modelled every kit in 3D CAD and offer different kits for specific intakes. If you’re in doubt, simply measure your manifold spacing – throttle shaft to throttle shaft.
Check out the following features:
Every Stromberg TwoStep linkage kit comes with full instructions. Further help with selection, installation and tuning is available at our Tech Center.
