  • TwoStep Linkage. 8-5/16in. Fits Offy Cadillac

    $49.95
    Linkages

    9250S

    • 8-5/16 inches from carb to carb
    • Extended throttle shafts not required
    • Fits Offenhauser 1080 2x2 intake for 1949-63 Cadillac (8-5/16in spacing)
    • Fits Eddie Meyer 1932-48 'low-rise' intake for Flathead Ford (8-1/4in spacing)
    • Fits other intakes with less than 8-5/16 inch carb spacin

    MORE DETAILS

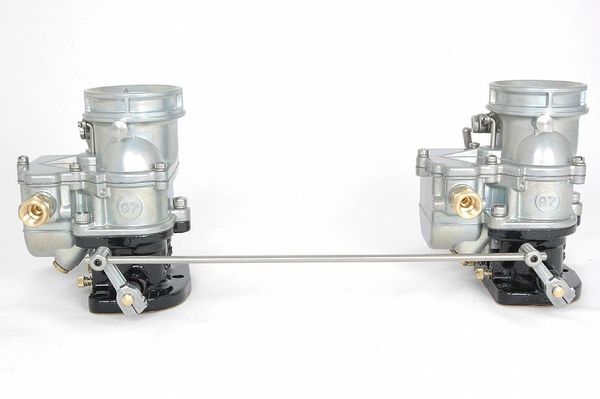

    A competitively priced 2x2 carburetor linkage with Superlink levers (click more for applications and details). Use with intake manifolds that put the carburetors 8-5/16 inches apart or less. See above for typical applications. Please note: Photo shows 9242S kit. This kit is the same, but puts the carburetors a little closer together.

    Designed and manufactured exclusively by Stromberg Carburetor, this linkage combines clean, traditional looks with maximum leverage. TwoStep linkage kits come pre-assembled and install in just two simple steps, without the need for extended throttle shafts. Different intakes use different carb spacing, so we model every kit in 3D CAD and offer different kits for specific applications. If you’re in doubt, simply measure your manifold spacing – throttle shaft to throttle shaft.

    Check out the following features:


    • Long die-cast zinc SuperLink lever arms. All other parts stainless steel.

    • Extended throttle shafts are not required.

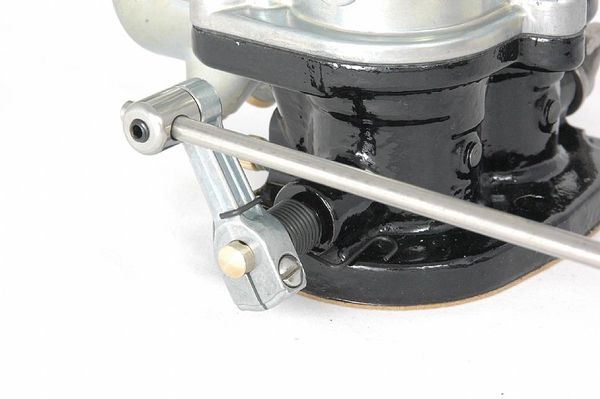

    • Two new Stromberg ‘Snapback’ throttle return springs, which wrap around the end of the throttle shaft. These chemically blacked, stainless steel torsion springs snap the carburetors shut, yet virtually disappear from view.

    • For a smooth, lightweight look, the swivels are positively fixed by a small e-clip on the back, and the small black set-screws on the front have knurled ends for a strong fix on the stainless rod.

    Every Stromberg TwoStep linkage kit comes with full instructions, and further help with selection, installation and tuning is available at our Tech Center.
