TwoStep Linkage. 10-3/8in. Fits Edelbrock Super
9244S
- 10-3/8inch carb to carb
- Extended throttle shafts not required
- Fits Edelbrock 1100 2x2 Super intake
MORE DETAILS

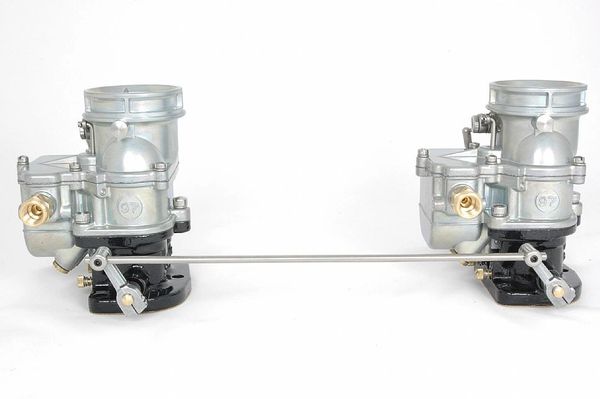

A competitively priced 2x2 Super carburetor linkage with Stromberg Superlink levers (click more
for applications and details). Use with intake manifolds that put the
carburetors 10-3/8th inches apart. See above for typical manifold
applications.
Designed and manufactured exclusively by Stromberg
Carburetor, the TwoStep linkage range combines clean, traditional looks
with maximum leverage. Each kit comes pre-assembled and installs in just
two simple steps, without the need for extended throttle shafts. These
kits are not a ‘one size fits all’ solution. Different intakes use
different carb spacing, so we modeled every kit in 3D CAD and offer
different kits for specific intakes. If you’re in doubt, simply measure
your manifold spacing – throttle shaft to throttle shaft.
Check out the following features:
- Long die-cast zinc SuperLink lever arms. All other parts stainless steel.
- Extended throttle shafts are not required.

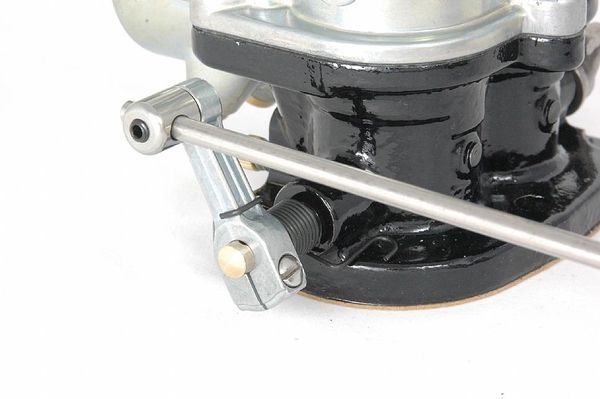

- Every kit comes with two new Stromberg ‘Snapback’ throttle return springs, which wrap around the end of the throttle shaft. These chemically blacked, stainless steel torsion springs snap the carburetors shut, yet virtually disappear from view.
- For a smooth, lightweight look, the swivels are positively fixed by a small e-clip on the back, and the small black set-screws on the front have knurled ends for a strong fix on the stainless rod.
