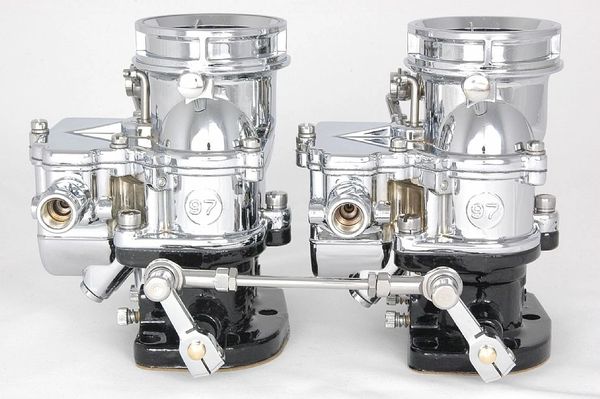

A Premium, CHROME 2x2 carburetor linkage with rod ends for positive action (click more
for applications and details). Use with intake manifolds that put the
carburetors 4-3/4 inches apart. See above for typical manifold
Designed and manufactured exclusively by Stromberg
Carburetor, the TwoStep linkage range combines clean, traditional looks
with maximum leverage. Each kit comes pre-assembled and installs in just
two simple steps, without the need for extended throttle shafts. These
kits are not a ‘one size fits all’ solution. Different intakes use
different carb spacing, so we modeled every kit in 3D CAD and offer
different kits for specific intakes. If you’re in doubt, simply measure
your manifold spacing – throttle shaft to throttle shaft.
Check out the following features:
- Premium kits have opposite threaded rod ends for easy adjustment. Just spin the rod to adjust for the correct lever angles.
- Extended throttle shafts are not required.
- Long die-cast zinc SuperLink lever arms. All other parts stainless steel – even the rod ends and lock nuts.
kit comes with two new Stromberg ‘Snapback’ throttle return springs,
which wrap around the end of the throttle shaft. These chemically
blacked, stainless steel torsion springs snap the carburetors shut, yet
virtually disappear from view.

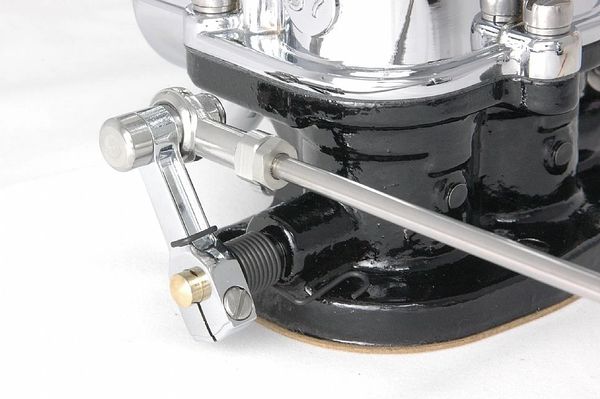

- Special swivels and bolts
were developed to clamp the rod ends tight. The rounded bolts have a
small blind hole in the head. Simply insert a small rod eg, a hex key,
to stop the swivels turning while you tighten the lock nuts.
Every Stromberg TwoStep linkage kit comes with full instructions, and
further help with selection, installation and tuning is available at our
