BIG97 Tri-Power with 9246 PRO Chevy linkage
$1,725.00
9510A-BIG-TRI-L

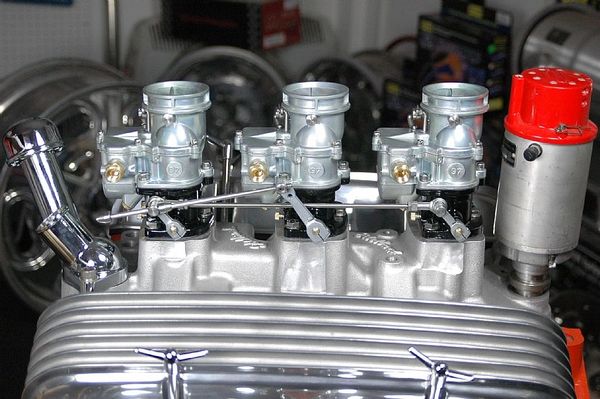

The All-New BIG97 Tri-Power.
On the outside, it’s Genuine 97 all the way. But on the inside, we’re talking the ultimate 750cfm hot rod Tri-Power, with new improved fuel circuits, ported distributor vacuum and a whole lot more. Add our progressive linkage and classic 3-into-1 fuel lines and you’re looking at old school carburetion with next level performance and drivability.
The pre-packed Tri-Power comes at special pricing compared with buying separate carbs. Add our Small Block Chevy linkage and fuel line and you can save even more!
55% more airflow
BIG97s make 55% more airflow than regular 97s - 750cfm for the Tri-Power, making it the perfect bolt-on for your small block Chevy or Ford. Cruise economically on the center Primary, then punch in the Secondaries when you step on the gas.
New power valve circuits improve fuel conditioning
Feeding top end enrichment directly into the emulsion tubes, the BIG97 Primary significantly improves fuel conditioning for more top end HP on less fuel.
New 'early plenum effect' boosts top end power
All three carbs allowing all cylinders to draw from both barrels giving you dual-plane drivability with a single-plane style top end horsepower.
Ported distributor vacuum
Switch in the brass plug (supplied) and connect your distributor to improve combustion efficiency in cruising mode. You'll run smoother and cooler, with more torque and better fuel mileage.
BIG S-jet twin-ball inlet valve
BIG97s accepts big diameter 5/16in hard line (regular 97s take only 1/4in line). BIG style Ford nut compression firings are available, and all our regular Stromberg fuel fittings - hose ends and banjos - all fit.
All Genuine 97!
Everything that makes the Genuine Stromberg 97 so popular is built into the all-new BIG97 Tri-Power. From the cast iron base to the reinforced air horn casting and everything in between. Note: As with regular new 97s, original hand throttle parts are not included.
Choose your finish
The BIG97 Tri-Power is also available in Chrome, Black & Chrome and Barn Find – all from stock, with cable choke and LZ-style ‘push-throttle’ options available to special order. Click the other tabs (above) to read more.
Runs out of the box
BIG97s come ready to run, with a wide range of jets and power valves available for special tuning to suit your individual application. Every BIG97 comes with full installation instructions and you can find more help on our Tech Center.
Add a Chevy linkage - save over $50!
Our 9246PRO progressive linkage combines clean, traditional looks with maximum leverage. It comes pre-assembled and installs in just two simple steps, without the need for extended throttle shafts. Every kit comes with two ‘Snapback’ throttle return springs, which wrap around the end of the throttle shaft and virtually disappear from view. The swivels are positively fixed by a small e-clip, and the black set-screws have knurled ends for a strong fix.
Add a fuel line too - save over $80!
Our classic 3-into-1 fuel line (Big Bore 5/16in OD) for Small Block Chevy (5-1/2in carb spacing to fit Offenhauser and Edelbrock SBC intakes) combines super-clean looks with simple TwoStep installation. Each kit is supplied with special 5/16in Ford Nut compression fittings and CNC-bent 304 stainless lines with leak-free, 'invisible' furnace brazed joints. The round-bar fuel block sits down close to the manifold, matching the 4 degree Chevy intake angle to align visually with the valve covers. And for maximum versatility, it has 1/4NPT threads at both ends and a wide range of complementary fittings is available for your fuel line or gauge.
NOTE: All BIG97 Tri-Powers are priced lower than buying the carburetors separately. Our linkage and full line offers are available only on BIG97 Tri-Power in regular OE finish.
NOTE: These carburetors are not designed to meet any emission requirements for 1968 and later applications. Therefore, they should be used only for competition/off road vehicles or vehicles not required to comply with late model exhaust emission standards.
- BIG 750cfm airflow - 55% more than regular 97s
- Signature 97 outside shape - No change!
- New power valve circuits improve fuel conditioning
- New 'early plenum effect' boosts top end power
- Ported distributor vacuum adds mid range torque
- Runs out of the box. Pre-jetted for typical SBC/SBF
- Progressive linkages available with cable throttle and kickdown options
- Classic 3-into-1 fuel line available for SBC
